EVALUATION PLANS

THESE EVALUATION PLANS ARE FOR TESTING AND INSPIRATION.

ALL EXTERNAL FINISHES AND VIEWS ARE SHOWN INDICATIVE ONLY AND ARE AT THE OWNERS DISCRETION.

CONSULTATION WITH THE LOCAL BUILDING AUTHORITY SHOULD BE CARRIED OUT TO CONFIRM THEIR REQUIREMENTS FOR CONTAINER HOUSING

THESE PLANS AND DESIGNS REMAIN THE PROPERTY OF 'CONTAINER LIVING HOME DESIGNS' AND ARE ISSUED AS A SAMPLE ONLY. NO CONSTRUCTION IS PERMITTED USING THESE PLANS OR DESIGNS.

Learn More

Evaluation Plans contain the basic Floor plan and Design intent with Perspective views.

A full set of Evaluation Plans for all the homes can be  purchased for $250

PURCHASE

FULL DESIGN PLANS

ALL CONSTRUCTION DETAIL PLANS ARE INDICATIVE ONLY.

ALL SUB-FLOOR SLAB, FOOTINGS, STRUCTURAL FRAMING AND ROOFING DETAILS TO BE CALCULATED BY ENGINEERS CONVERSANT IN THE LOCAL BUILDING CODES AND REGULATORY AUTHORITY'S  REQUIREMENTS BEFORE CONSTRUCTION.

ALL CONTAINER OPENINGS TO BE STRENGTHENED WITH STRUCTURAL FRAMING AS TO NOT EFFECT THE STRUCTURAL INTEGRITY OF THE CONTAINER.

ALL MODIFICATIONS SHOULD BE CERTIFIED BY AN ENGINEER.

IT IS RECOMMENDED TO USE MINIMUM CLASS-B CONTAINERS THAT ARE IN GOOD STRUCTURAL CONDITION WITH NO CHEMICAL RESIDUE.

Learn More

Construction plans contain a full set of plans to  a construct a container home. any modifications shown on the plans should be certified by an Engineer conversant in the local building codes and regulatory requirements.

A full set of Construction plans for an Individual home can be Purchased for $750 If you has previously Purchased the Evaluation Sets this will be deducted from the Cost.

purchase

Container-1


Details

The Container-1 design consists of 5 Containers with 3 bedrooms, 2 bathrooms and the main living area on the ground floor with a double level kitchen area. It also features undercover parking and large storage room.


Ground Floor

Consists of the main living area, kitchen and a large laundry and storage rooms.

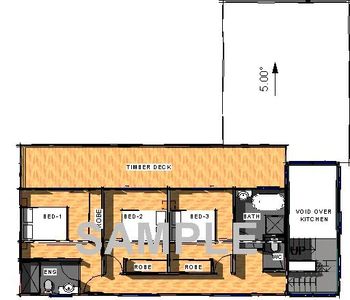

Upper Level

Has the 3 bedrooms and a family bathroom with the main bedroom having an ensuite. The stair void also created a double level kitchen void.

Video

Container-1 Fly-around

Container-2


Details

The Container-2 design consists of 5 Containers with 3 bedrooms, 2 bathrooms and the an open plan living on the ground floor It also features large laundry storage room.


Ground Floor

Consists of an large open plan living area,  a powder room and a large laundry and storage rooms.


Upper Level

Has the 3 bedrooms and a family bathroom with the main bedroom having an ensuite. It also feature a deck with access from each bedroom.

Video

Container-2 Fly-around

Container-3


Details

The Container-2 design consists of 4 Containers with 3 bedrooms, 2 bathrooms and the an open plan living on the ground floor. It features classic Art Deco marine styling with a wrap around deck.



Ground Floor

The ground floor has a large open plan living area with a galley style kitchen,  a powder room and a large deck protected by the offset overhang from the upper level.

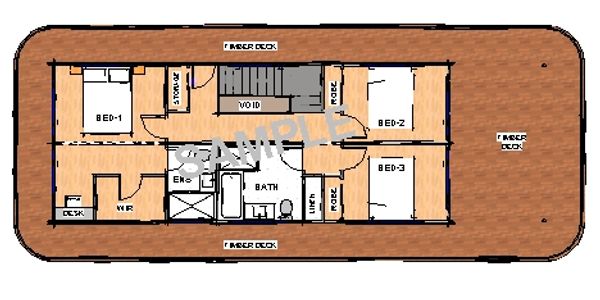

Upper level

Has the 3 bedrooms and a family bathroom with the main bedroom having an ensuite. It also feature a  full wrap around deck with access from each bedroom..

Video

Container-3 Fly-around

Container-4


Details



The Container-4 design consists of 4 Containers with 3 bedrooms, 2 bathrooms. The home layout is similar to the Container-3 design but with the entry at the opposite end of the layout. It has open plan living on the ground floor. It features classic Art Deco marine styling with a wrap around deck.


Ground Floor

 The ground floor has a large open plan living area with a galley style kitchen,  a powder room and a large deck protected by the offset overhang from the upper level.


Upper Level

 Has the 3 bedrooms and a family bathroom with the main bedroom having an ensuite. It also feature a wrap around deck with access from each bedroom. as well as a deck off the front of the master bedroom.

Video

Container-4 Fly-around

Container-5


Details

The Container-5 design consists of 5 Containers with 3 bedrooms, 2 bathrooms and the a large open plan living on the ground floor. level 1 is offset from the lower level with angled stairs with a large deck.


Ground Floor

The ground floor is all about entertaining with a big open plan living area opening up onto a large deck. the kitchen also has a breakfast bar which open onto the deck.

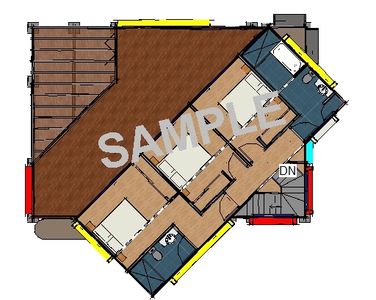

Upper Level

The upper level is offset from the lower level and has 3 bedrooms 2 bathrooms and a large deck all acessed from a set of angle stairs

Video

Container-5 Fly-Around

Container-6


Details

The design is one of the large homes. It consist of 4x12m and 4x6m containers laid out  in a square pattern to create a private tranquil garden atrium in the middle of the home.


Floor Plan

This home is has an  open plan living dining kitchen area with a fire place separating a formal lounge and living-dining space. The 3 generous bedrooms are on the opposite side of the atrium for privacy and  peacefulness.


Features

The main feature of this home is the natural Atrium in the centre providing a seamless link to the outside from all over the home. It also features a wide veranda along the lounge-living room side with a large dining terrace connecting directly from the kitchen. The main bedroom ensuite features a 'Wet room" with the bath open to the outside. There is a large storage room of the laundry with external access. The skillion roof can be tilted in toward the Atrium to provide easy rainwater collection and storage.

Video

Container-6 Fly-around

Container-7


Details

If you want something with 2 bedrooms but different this design is for you It uses 1x12m and 3x6m containers laid out to created a large enclosed deck.

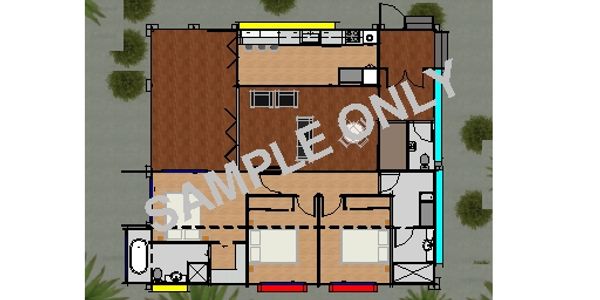

Floor Plan

This design is for someone who want a good size master suite with a second guest bedroom. All the bedrooms and living room access directly to a spacious enclosed  deck.


Rear View

Video

Container-7 Fly-around

Container-10


Details

This design consists of 3x12m containers. It has  3 bedrooms and 2 bathrooms. It features a angled roof clerestory window in the living area.


Floor Plan

The main living area in open plan with a Raised roof and Clerestory window to give the feeling of size. All the bedroom run along the rear of the house. It features a large laundry and ample storage.


Features

The living areas open up onto a deck with the Laundry and bedroom-1 also opening up onto decks.

Video

Container-10 Fly-around

CONTAINER-11


Details

 This design consists of 2x12m and 2x6m containers. It has  3 bedrooms and 2 bathrooms. It features a pitched  roof over the main living area.


Generate excitement

This design has a feeling of space. The generous open plan living area has a galley style kitchen with a breakfast bar the opens onto a covered deck. All 3 bedrooms a good size with the Master bedrooms having a large  ensuite and WIR.


Features

The raised pitched room make the living area feel big and open. The covered deck has access from the kitchen- living room and master bedroom. The master bedroom's ensuite has a alcove bath with large windows to bring the outside in.

Video

Container-11 Fly-around
